RAMFAN HAZERDOUS LOCATION BLOWER/EXHAUSTER
UB20xx, 0.33hp Electric, 8″/20cm
Compact and lightweight while delivering the highest CFM available. Ultra-quiet operation at 74 dB. Power cable is 7.6 m long for extended reach. Integrated duct adapters to easily connect to anti-static duct.

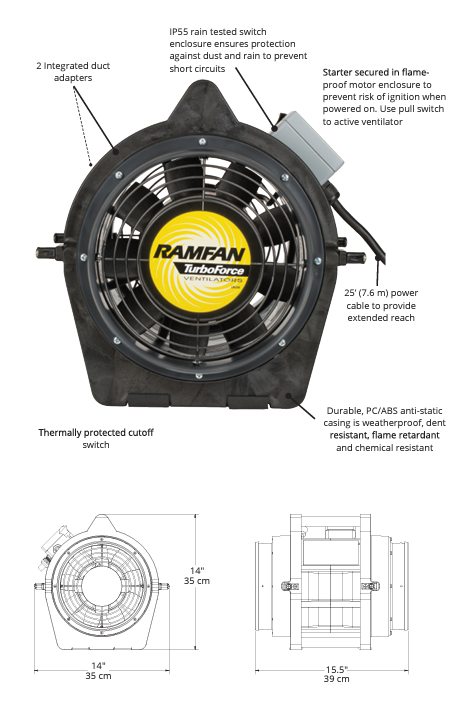

Features and Benefits
High pressure axial blower
Durable, PC/ABS anti-static casing is weatherproof, dent resistant, v0 flame retardant and chemical resistant
2 integrated duct adapters
Starter secured in flameproof motor enclosure to prevent risk of ignition when powered on. Use pull switch to active ventilator
Compact and lightweight
IP55 rain switch enclosure
UB20xx, 0.33hp Electric, 8″/20cm
Compact and lightweight while delivering the highest CFM available. Ultra-quiet operation at 74 dB. Power cable is 7.6 m long for extended reach. Integrated duct adapters to easily connect to anti-static duct.
Features and Benefits
High pressure axial blower
Durable, PC/ABS anti-static casing is weatherproof, dent resistant, v0 flame retardant and chemical resistant
2 integrated duct adapters
Starter secured in flameproof motor enclosure to prevent risk of ignition when powered on. Use pull switch to active ventilator
Compact and lightweight
IP55 rain switch enclosure
UB20xx, 0.33hp Electric, 8″/20cm
Compact and lightweight while delivering the highest CFM available. Ultra-quiet operation at 74 dB. Power cable is 7.6 m long for extended reach. Integrated duct adapters to easily connect to anti-static duct.
Features and Benefits
High pressure axial blower
Durable, PC/ABS anti-static casing is weatherproof, dent resistant, v0 flame retardant and chemical resistant
2 integrated duct adapters
Starter secured in flameproof motor enclosure to prevent risk of ignition when powered on. Use pull switch to active ventilator
Compact and lightweight
IP55 rain switch enclosure
Explosion-proof blower/exhauster manufactured to meet the requirements of the ATEX Directive, IEC standards and INMETRO standards. Safely blow or exhaust hazardous gases with minimal risk of the fan causing a spark.
Safety is compromised if any component along the electrical path in the blower/exhauster poses a risk of igniting a spark. Therefore, the UB20xx is built using only certified explosion-proof components along the electrical path. Furthermore, once assembled, the whole unit is certified for safe use in explosive atmospheres in accordance with the limitations of the rating. It is the user’s responsibility to determine the suitability of equipment for the intended purpose.
